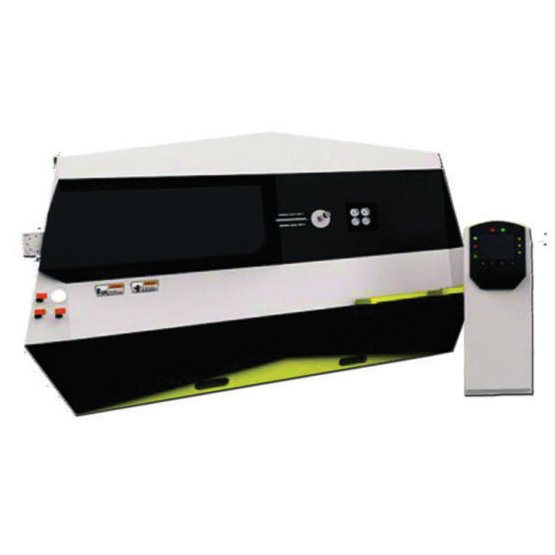

MP CNC SB D-4

Single Wire: 5-13 mm

Double Wire /Round /Rib: 5-10 mm /5-8 mm

Production Capacity Per Month: 200-250 tons 10 hrs x 2 Shifts /Day & 26 Days/ month

Max Bending Angle: 士 180°

Max Bending Speed: 1050°/Sec

Max Pulling Speed: 75-100m/min

Length Tolerance: 士 1mm

Bending Tolerance: 士 1°

Avg Electric Power Consumption: 5-7 Kw/h

Avg Air Compresses Consumption: NA

Labeled Electric Power: A. Traction Motor – 24 kw B. Bending Motor – 7 kw C. Cutting Motor – 4 kw D. Air Compressor – 7.5 kw E. Return Motor – 1.4 kw F. Preset Motor – 0.75kw – 45 KW
Voltage: 380 V – 50 Hz-3 p

Weight: 4200 Kg
Working Environmental Temperature: -5°C to 40°C

Dimension: 3800 x 1300 x 2220 mm
Max Length of Stirrup side: 1000mm

Min Length of Stirrup Side: 90mm
